Color
Black
Size
(EEE)
24.0cm 24.5cm 25.0cm 25.5cm 26.0cm 26.5cm
27.0cm 28.0cm 29.0cm 30.0cm
Accessories
Electrical resistance test report
※The footwear shall only be used the attached size adjuster and insock.
(Electrical resistance property would not be maintained with others.)
Features

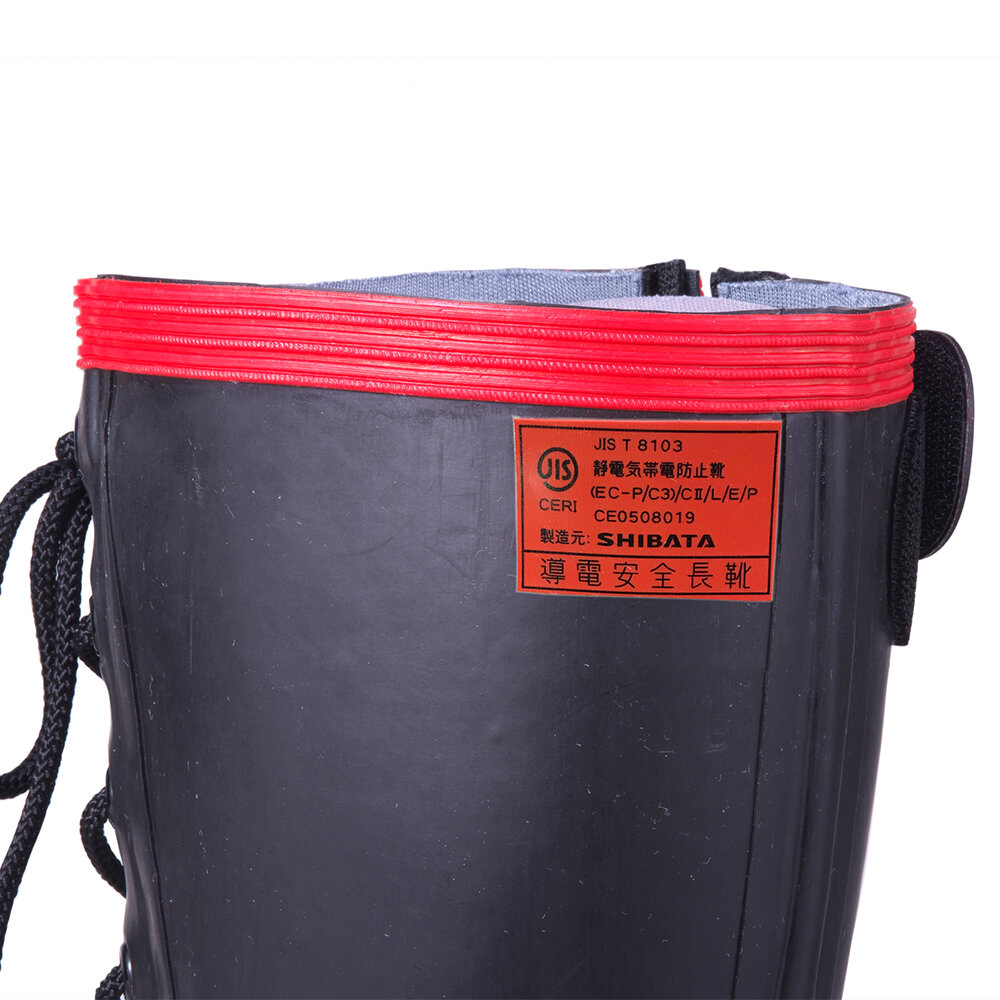

- Offering safety in accordance with JIS T 8103EC-P/C3/Non Oil Resistance Rubber/L
- Electric resistance equal or less than 1.0×104Ω
- Conforming to TLT-282002, "Research report of safety measures for works approaching to live parts at power

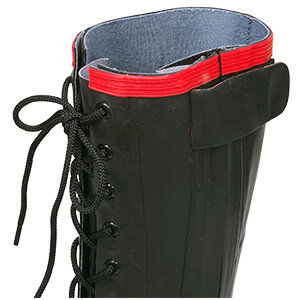

transmission lines " - Providing comfortable fit and easy on and off as well as securing waterproof performance up to the opening by applying

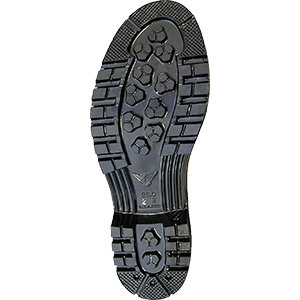

the water guard - The insert for penetration resistance is applied to the sole.
Applications
- Electrostatic coating operations
- Operations at high explosion hazard areas
Specification
Standard
JIS T 8103 EC-P/C3 (Electrostatic conductive footwear)
JIS T 8101 Non-oil resistant rubber L/P (Light work)
Standard Weight
approx. 2,080g/one pair (Size 26.0cm)
Shoes Size Conversion Table
| Size | Height | Top-line | Width | |||
| JPN | U.S. | U.K. | EUR | |||
| 24.0 | 6.0 | 5.5 | 38 | 33.0cm | One Size | 24.9cm |
| 24.5 | 6.5 | 6.0 | 39 | 33.0cm | 25.2cm | |
|
25.0 |
7.0 | 6.5 | 40 | 33.0cm | 25.5cm | |
|
25.5 |
7.5 | 7.0 | 41 | 34.0cm | 25.8cm | |
| 26.0 | 8.0 | 7.5 | 42 | 34.0cm | 26.1cm | |
| 26.5 | 8.5 | 8.0 | 43 | 34.0cm | 26.4cm | |
| 27.0 | 9.0 | 8.5 | 44 | 34.0cm | 26.7cm | |
| 28.0 | 10.0 | 9.5 | 46 | 34.0cm | 27.3cm | |
| 29.0 | 11.0 | 10.5 | 48 | 34.0cm | 27.9cm | |
| 30.0 | 12.0 | 11.5 | 50 | 34.0cm | 28.5cm | |
※Each dimension is measurements of a last.
