We offer two types of cloth S-CON.
One is for a single use known as CSI※1 and the other one is used for several times during a year know as CST※2.
※1 CSI : Single-trip FIBC
※2 CST : Standard duty reusable FIBC

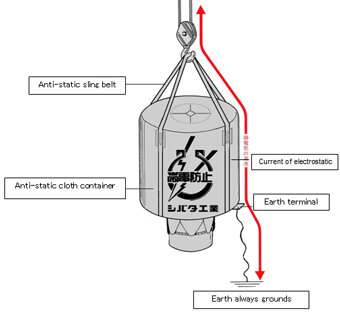

- When using, static electricity occured on a container will be reduced promptly.
Disaster related to static electricity will be precluded in order to prevent electrification. - Conductive structure of the container is built by applying special processing.
- It is designed for a single use or to be used several tines during a year and would help saving the initial cost.
- It is very lightweight and easy to handle using the strong synthetic resin fabric as its material.
Specifications
Weight Capacity (Safe Working Load)：500kg to 1,000kg
Volume：0.5m3 to 3m3
| Kind | Required Performance | Ambient Condition | |
| CENELEC CLC/TR 50404 |
IEC 61340-4-4 JIS C 61340-4-4 |
||
| Type C | Static control | Resistance of less than 1×107Ω | Minimum ignition energy of more than 0.14mJ |
| Kind | Earth bonding point | Prevents the form of electrostatics discharge | |
| CENELEC CLC/TR 50404 |
IEC 61340-4-4 JIS C 61340-4-4 |
||
| Type C | Static control | Necessary | Propagating brush discharge Spark discharge Brush discharge |
| (JIS C 61340-4-4) | |||
Certification
It is a flexible container Japan Industries Association standard product that complies with the JIS Z 1651:2008.
