An antistatic container useful for preventing dust explosion and electric shock during filling, transport, storage and discharge processes in industries dealing with powders and granulated materials.
- When using, static electricity occured on a container will be removed promptly. Disaster related to static electricity will be precluded in order to prevent electrification.

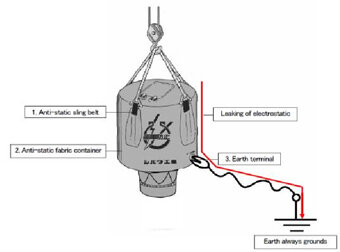

- S-CON has conductive structure that is manufactured with conductive rubber releasing static electricity.
- It’s strong, durable, easy to maintain with no extra running cost required.
- Insuring heat resistance, it can be used for filling heat-containing materials.
(There is the model that obtains performances of heat resistance and antistatic simultaneously.) - It is manufactured by vulcanizing adhesion method that allows the rubber container bag made with fully integrated molding.
Specifications
Weight Capacity (Safe Working Load)：500kg to 1,000kg
Volume：0.5m3 to 3m3
| Kind | Required Performance | Ambient Condition | |
| CENELEC CLC/TR 50404 |
IEC 61340-4-4 JIS C 61340-4-4 |
||
| Type C | Static control | Resistance of less than 1×107Ω | Minimum ignition energy of more than 0.14mJ |
| Kind | Earth bonding point | Prevents the form of electrostatics discharge | |
| CENELEC CLC/TR 50404 |
IEC 61340-4-4 JIS C 61340-4-4 |
||
| Type C | Static control | Necessary | Propagating brush discharge Spark discharge Brush discharge |
| (JIS C 61340-4-4) | |||

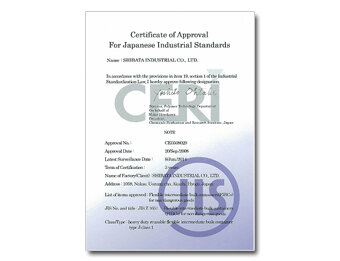

Certification
JAPAN INDUSTRUAL STＡNDARD
JISZ1651：2008
Flexible intermediate bulk containers(FIBCs)for non-dangerous goods
This Standard specifies materials,construction,design requiremens,product test and marking for the flexible intermediate bulk containers to be used for the conveyance of non-dangerous goods in powdery and granular forms.
This is applicable to containers designed to be limited from above by integral or detachable devices.
